What Causes Black Tear Streaks and Dirt on Exterior Walls? The Root Problem Lies in the Absence of an Effective “Water-Breaking Physical Detail”

The root cause of black tear streaks and dirt on exterior walls is the lack of an effective water-breaking physical detail at building projections, such as window sills and parapets. Without such a detail, rainwater carrying dust flows down the wall surface and leaves deposits behind. If the problem is addressed only by washing the wall or repainting repeatedly, the staining will still return after the next rain.

In practice, before applying Hua Tsai stone-like coatings, a drip edge should be installed at the same time to create a physical water-break point. This detail directs rainwater away from the wall body before it can cling to the facade, ensuring long-term cleanliness and helping prevent water infiltration.

Key Takeaways: Why Drip Edges Matter

If you do not have time to read the full article, here are the five core points about drip edges and exterior wall maintenance:

• Eliminates black tear streaks on exterior walls: A drip edge creates a water-break mechanism that forces rainwater to fall before it touches the wall surface, effectively preventing the black staining commonly seen beneath window frames and parapets.
• Strengthens waterproofing performance: As the first line of defense in a building waterproofing system, it helps prevent water from being drawn back into structural joints, reducing the risk of rusting reinforcement bars and interior wall deterioration.
• A must-have for facade renovation: During facade resurfacing or exterior wall renovation, pairing a drip edge with Hua Tsai stone-like coatings significantly reduces wall maintenance burdens and helps preserve the building’s appearance for more than 20 years.
• Supports ESG and sustainability goals: By using physical design rather than chemical cleaning to control staining, drip edges reduce the need for detergents and repeated repairs, aligning with trends in low-carbon buildings and green building materials.
• High return on investment: The installation cost of a drip edge usually accounts for only a very small proportion of the total project cost, approximately 1%–2%, yet it can greatly improve property value retention and reduce long-term cleaning and maintenance expenses.

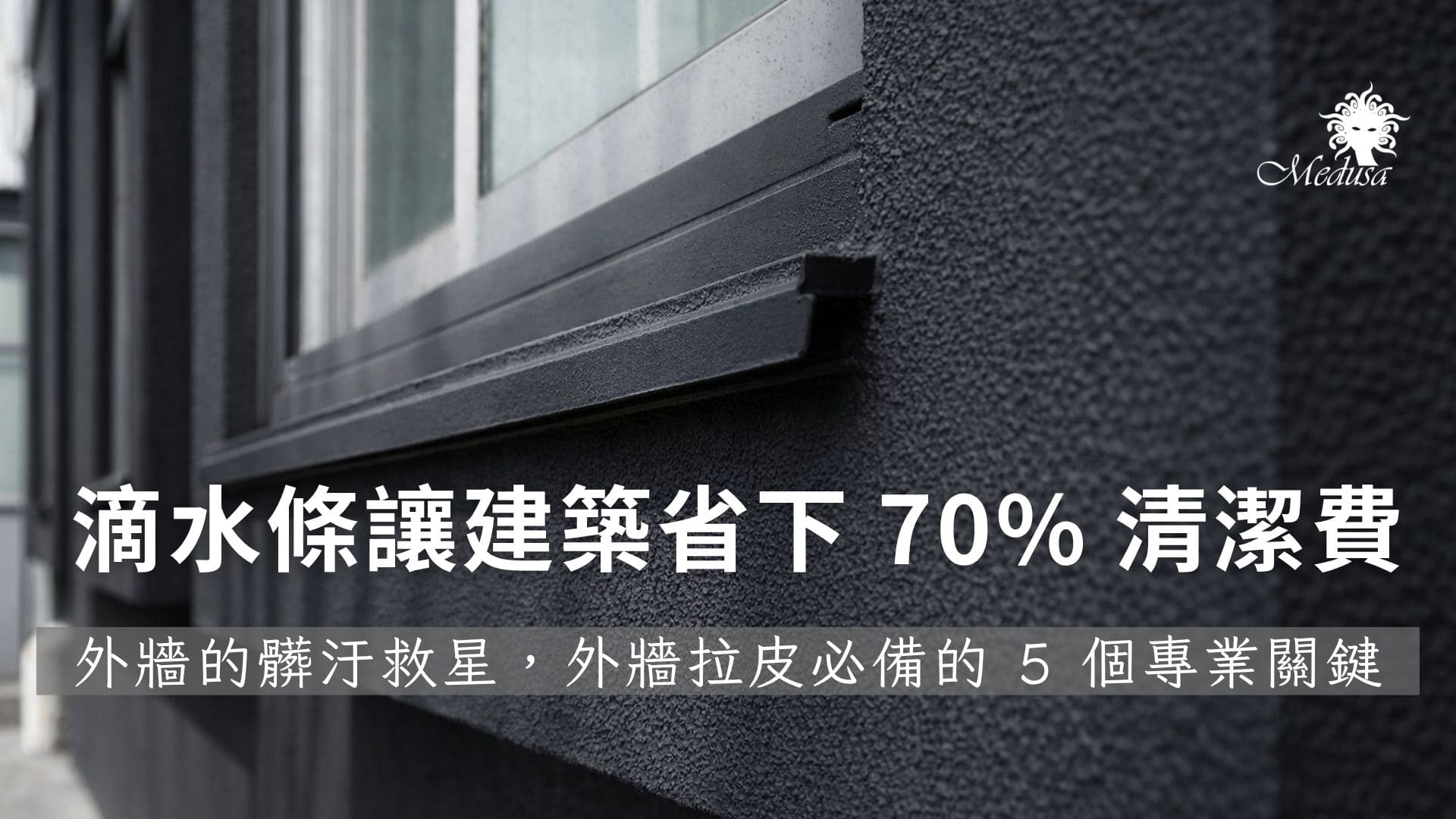

The Exterior Wall Stain Solution: How a Drip Edge Helps Buildings Save 70% on Cleaning Costs — 5 Key Reasons It Is Essential for Facade Renovation

Introduction: Why Does a New Building Look Old in Less Than Three Years?

In Taiwan’s humid, rainy climate with high atmospheric dust levels, many homeowners and property management committees face the same frustrating issue: a newly completed building or an exterior wall renovation project that cost millions can begin showing stubborn black “tear streaks” beneath window frames and along parapets after only two or three years of exposure to wind and rain. These stains make the building look old and worn, and directly affect its property value.

Many people mistakenly believe this is due to poor paint quality or poor workmanship. However, as a professional architectural coating expert, Hua Tsai wants to emphasize that the key to a beautiful facade often lies not in the wall surface itself, but in a frequently overlooked architectural micro-detail: the drip edge.

This article is intended for architects, designers, and homeowners who care about building quality. It will explain the scientific principles behind drip edges, the key construction details, and why they are an indispensable long-term aesthetic safeguard in facade renovation projects.

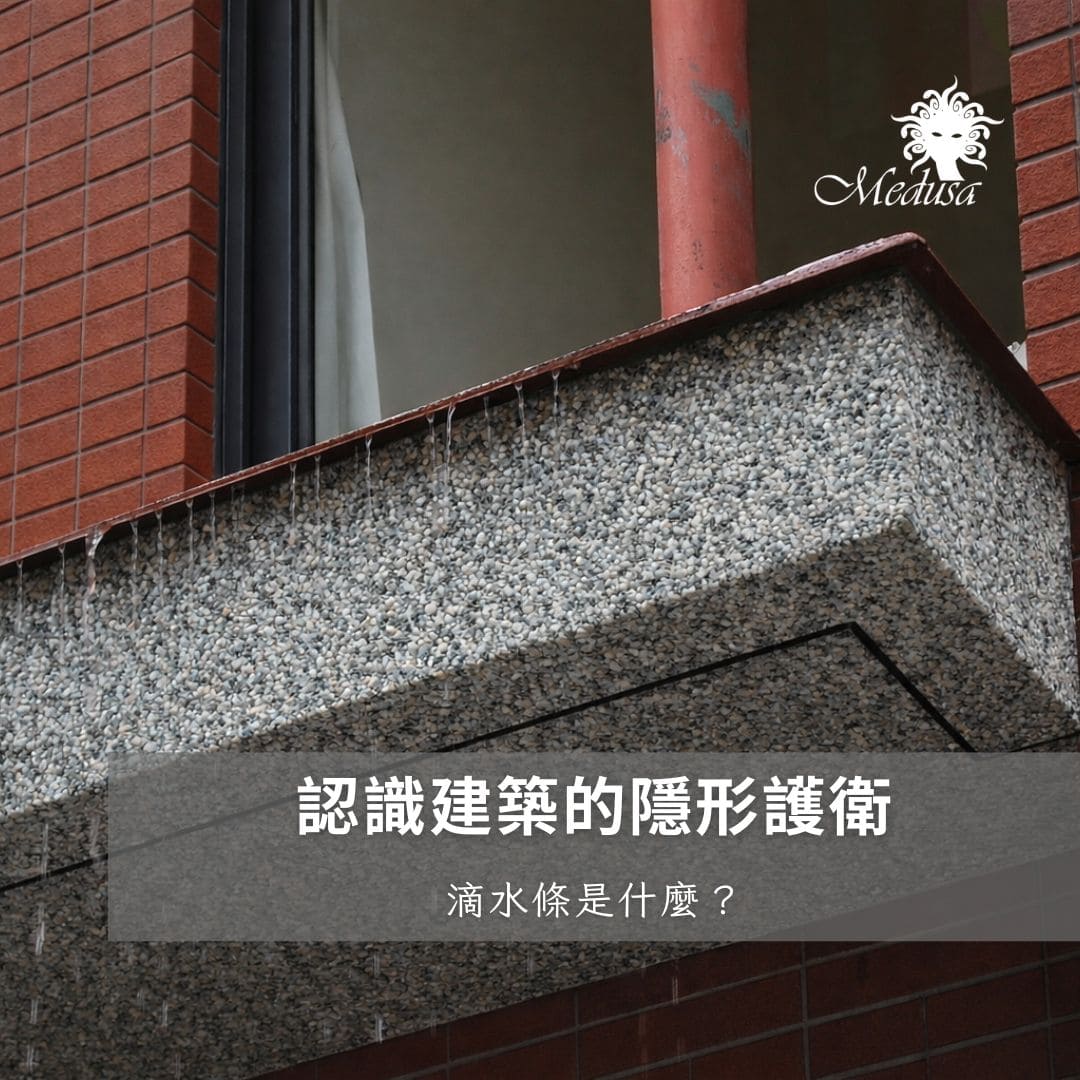

1. Understanding the Building’s Invisible Guardian: What Is a Drip Edge?

Before discussing how to keep a building looking new for years, we must first understand how moisture interacts with wall structures in building physics. Many people assume dirty wall surfaces are simply the result of poor air quality, but in reality, the issue is closely related to the building facade’s drainage logic. A building may look smooth on the surface, but on a microscopic level, fluid dynamics determines whether dirt stays or goes.

In professional architectural design, a drip edge is considered a small but critical node in the external drainage system. It is not merely an aluminum or plastic trim strip. It is a carefully designed physical interruption point. By using gravity to counteract the adhesion caused by surface tension, it ensures that water breaks away before reaching the wall surface. In Hua Tsai’s technical practice, this is the first line of defense in protecting the coating from water-related damage.

Table 1. Analysis of Physical Mechanisms

Analysis Dimension	Conventional Design Without Drip Edge	Design With Drip Edge	Quantified Improvement
Water Flow Path	Surface tension causes backflow	Physical water-break forces downward drip	Reduces wall-contact water flow by 95%
Moisture Content Impact	Junctions remain damp for long periods	Maintains a dry and ventilated condition	Reduces wall moisture content by about 30%
Dirt Deposition	100% of dirt adheres to wall with rainwater	85% of dirt falls away with water droplets	Significantly extends coating self-cleaning cycle
Maintenance Demand	Requires frequent chemical cleaning	Mostly maintained by natural rainfall rinsing	Reduces manual cleaning costs by 60%

1. Physical Principle: Surface Tension and the Water-Break Mechanism

A drip edge is a linear component installed beneath architectural projections, such as the underside of window sills, parapets, balconies, eaves, and sunshades. To understand its importance, one must first understand surface tension and the Coandă effect.

When rainwater flows down a vertical wall and reaches a horizontal projecting structure such as a window sill, it does not simply fall vertically. Due to surface tension, the water tends to cling to the underside of the projection and move inward along the horizontal surface. In architectural practice, this is often referred to as backflow or water draw-back.

As the rainwater travels inward, it also carries with it dust, air pollutants, and acidic residues from the exposed surface. When the water later evaporates, these contaminants remain on the wall, gradually forming the dark streaks that are so difficult to clean.

2. Structural Design of a Drip Edge

The core of drip edge design is to create a physical interruption point. Through a downward-projecting lip or a specially shaped groove, the design forces water to detach and fall due to gravity before it can continue along the main wall surface. This simple but effective detail completely separates dirty water from the wall surface.

Section Summary

Understanding the science behind drip edges is the first step toward mastering long-term architectural aesthetics. By interrupting surface tension, rainwater can be effectively guided away from the facade, eliminating the conditions that create tear streaks at their source. This type of micro-scale water-break design is exactly the kind of protective detail that Hua Tsai values most in the pursuit of premium craftsmanship.

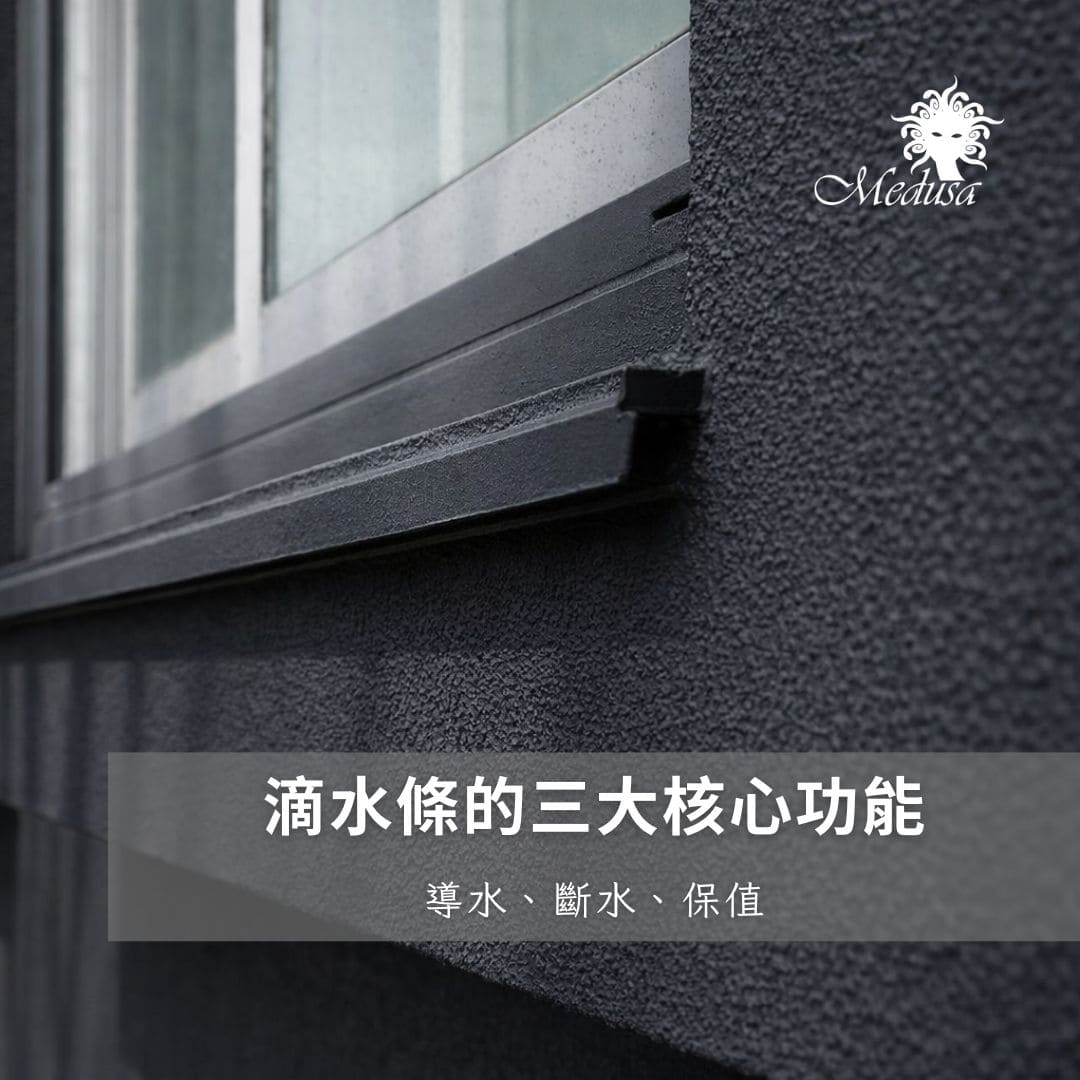

2. The Three Core Functions of a Drip Edge: Water Guidance, Water Break, and Value Preservation

Why do professional architects always specify drip lines in facade spray-coating projects? Because the benefits of a drip edge go far beyond merely preventing dirt. In life-cycle cost analysis for buildings, a properly configured drip system helps balance three critical aspects: maintaining aesthetics, protecting structural safety, and preserving asset value.

A high-quality Hua Tsai stone-like coating may be compared to an expensive suit, while the drip edge is like an umbrella. Even the best stain-resistant coating will lose its quality if it is constantly soaked in dirty water. Below, we examine why drip edges play such a crucial role in building maintenance.

Based on Hua Tsai’s project experience, buildings equipped with drip edges can reduce exterior wall maintenance costs by more than 40% on average. Their three main functions are as follows:

1. Completely Preventing Tear Streaks and Dirt

This is the most immediate benefit. With precise water-guiding design, rainwater is directed away from the wall before it can leave stains. This is especially important for buildings finished with Hua Tsai stone-like coatings or artistic coatings. Although Hua Tsai coatings have excellent stain resistance and weatherability, concentrated dirty runoff over time still increases cleaning pressure. Drip edges keep the wall surface drier and looking newer for longer.

2. Protecting the Building Structure and Preventing Leakage

Water is the number one cause of building deterioration. When rainwater is drawn back through window sill joints, long-term exposure can cause:

• Rebar corrosion: Water penetrates the concrete layer and causes internal steel expansion.
• Interior wall damage: Paint peeling and mold growth can appear around window interiors.
• Coating blistering: Excess internal wall moisture reduces the adhesion of exterior coatings.

A drip edge effectively lowers the moisture content at structural junctions and serves as the first line of defense in the building waterproofing system.

3. Enhancing Property Value and Sustainable Aesthetics

In ESG-oriented building assessment, ease of maintenance is an important indicator. A building that naturally stays cleaner reduces future chemical cleaning, as well as the risks associated with high-altitude maintenance work. A cleaner-looking building also commands stronger premiums in the secondary real estate market. This is the hidden return on investment that a drip edge provides.

Table 2. Comparative Performance Analysis

Functional Indicator	Without Drip Edge	With Hua Tsai Professional Drip Edge	Long-Term Value Improvement
Facade Appearance	Visible black tear streaks within 3 years	Maintains original texture for over 10 years	Property value retention improves by 15–20%
Leakage Risk	Water easily accumulates and infiltrates around window joints	Water is guided away from gaps	Reduces risk of window-side wall damage by 40%
Coating Adhesion	Easily affected by moisture, leading to blistering	Keeps coating substrate dry	Extends coating life by 1.5 times
Cleaning Frequency	Recommended cleaning every 2 years	Recommended maintenance every 6–8 years	Saves 70% in high-altitude maintenance costs

Section Summary

A drip edge is not only about eliminating visible wall stains. It is also an essential part of the structural waterproofing system. By delivering water guidance, water interruption, and asset preservation at the same time, it helps buildings maintain stable moisture content and facade quality even under extreme weather conditions. Choosing the correct drainage detail is one of the most direct ways to protect building value.

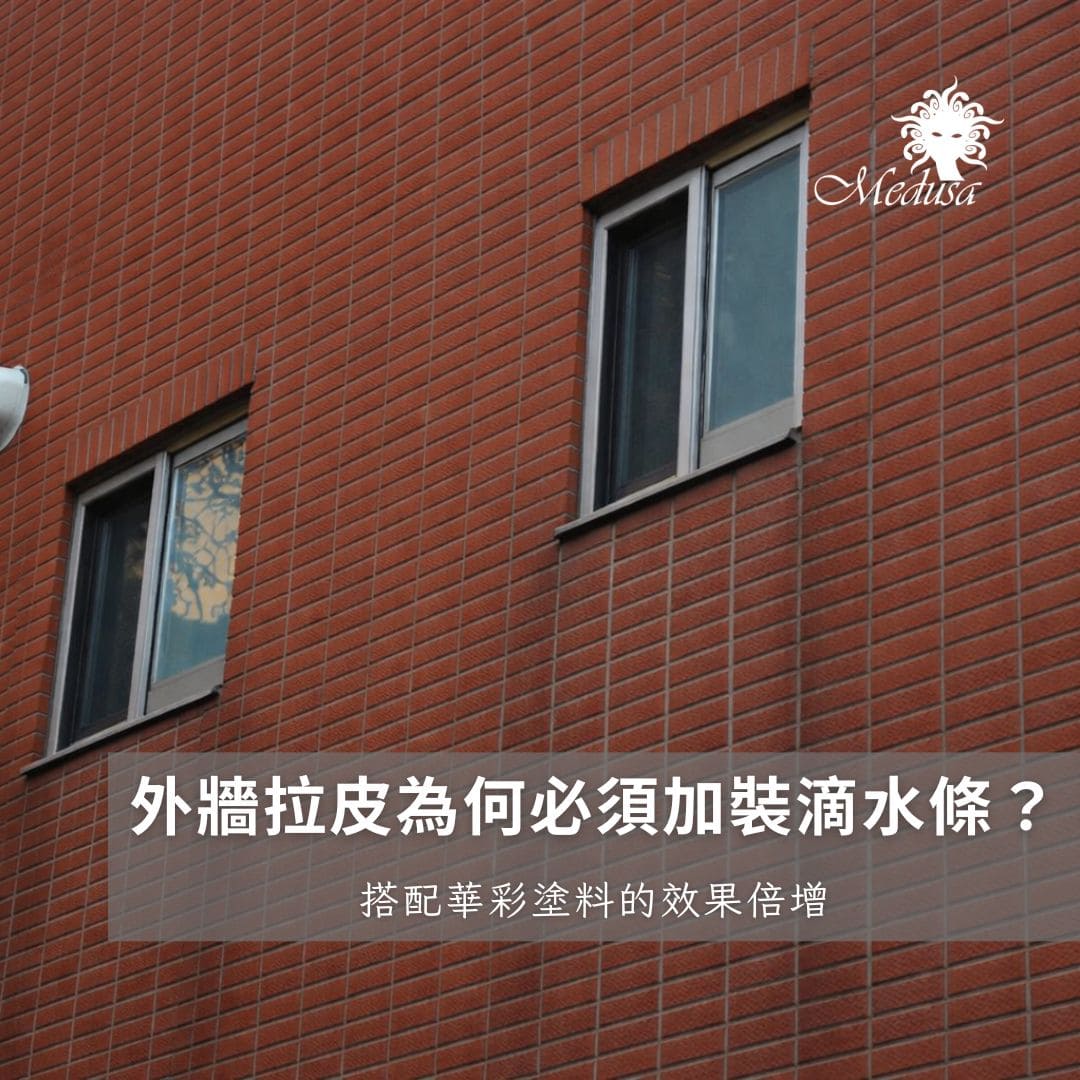

3. Why Must Exterior Wall Renovation Include a Drip Edge? The Effect Is Multiplied When Paired with Hua Tsai Coatings

In old-building renewal and facade renovation projects, the structures we deal with are often already damaged or poorly designed. One of the most common issues is inadequate window sill slope or improper parapet edge detailing, which allows rainwater to seep into the substrate for years. This is why, when using Hua Tsai coatings for renovation, the focus should not be only on color and texture, but on systematic rehabilitation.

Combining drip edges with modern spray-coating technology is currently one of the best ways to improve the “physical health” of older buildings. This approach not only corrects design flaws from the past, but also provides a dry physical environment for the newly applied coating. For high-performance, lightweight renovation systems, this integrated planning of coating materials and architectural accessories is the key to ensuring results that last for 20 years.

Exterior wall renovation is a precision project. It is not merely about giving the building a new surface. It is also about correcting old structural weaknesses.

1. Repairing Design Deficiencies in Older Buildings

Many buildings in Taiwan constructed 30 to 40 years ago were built without any drip-edge concept. In many cases, window sills were simply finished with a layer of cement mortar. During renovation, adding aluminum alloy or high-density PVC drip edges can compensate for those original design shortcomings.

2. Reducing Structural Load: The Perfect Combination of Coatings and Drip Edges

Traditional facade renovation often uses ceramic tiles, but tiles are heavy and prone to detachment. The modern mainstream approach is to replace them with the Hua Tsai stone-like spray system.

• Lightweight: Stone-like coatings weigh only about one-tenth as much as tiles.
• Integrated appearance: The drip edge can be powder-coated in advance to match the color of Hua Tsai coatings, ensuring smooth facade lines without visual disruption.

3. Solving Leakage at Material Joints

The greatest concern in facade renovation is cracking at the junction between old and new materials. With its winged profile, the drip edge can be embedded between the coating layer and the substrate, forming a physical water barrier and strengthening waterproofing performance around window frames.

Table 3. Construction Benefit Analysis

Construction Indicator	Traditional Tile Facade Renewal	Hua Tsai Spray Coating + Drip Edge	Renovation Advantage
Structural Load	Approx. 40–60 kg/m²	Approx. 3–5 kg/m²	Reduces building load by over 90%
Construction Speed	Requires tile removal and adhesive installation, time-consuming	Spray application combined with drip-edge installation, high efficiency	Shortens project duration by about 30–40%
Interface Waterproofing	Tile joints are prone to leakage	Drip-edge wing provides physical water blocking	Improves waterproofing at critical joints by 50%
Renovation Cost	Higher unit cost and prone to future detachment	Lower total cost and easier maintenance	Improves ROI by 25%

Section Summary

In facade renovation projects, the drip edge plays a crucial role in correcting old design deficiencies and eliminating common drainage dead zones in traditional buildings. When paired with Hua Tsai’s lightweight and weather-resistant spray system, it not only significantly reduces structural load, but also injects long-lasting function and beauty into older buildings without altering the main structural body.

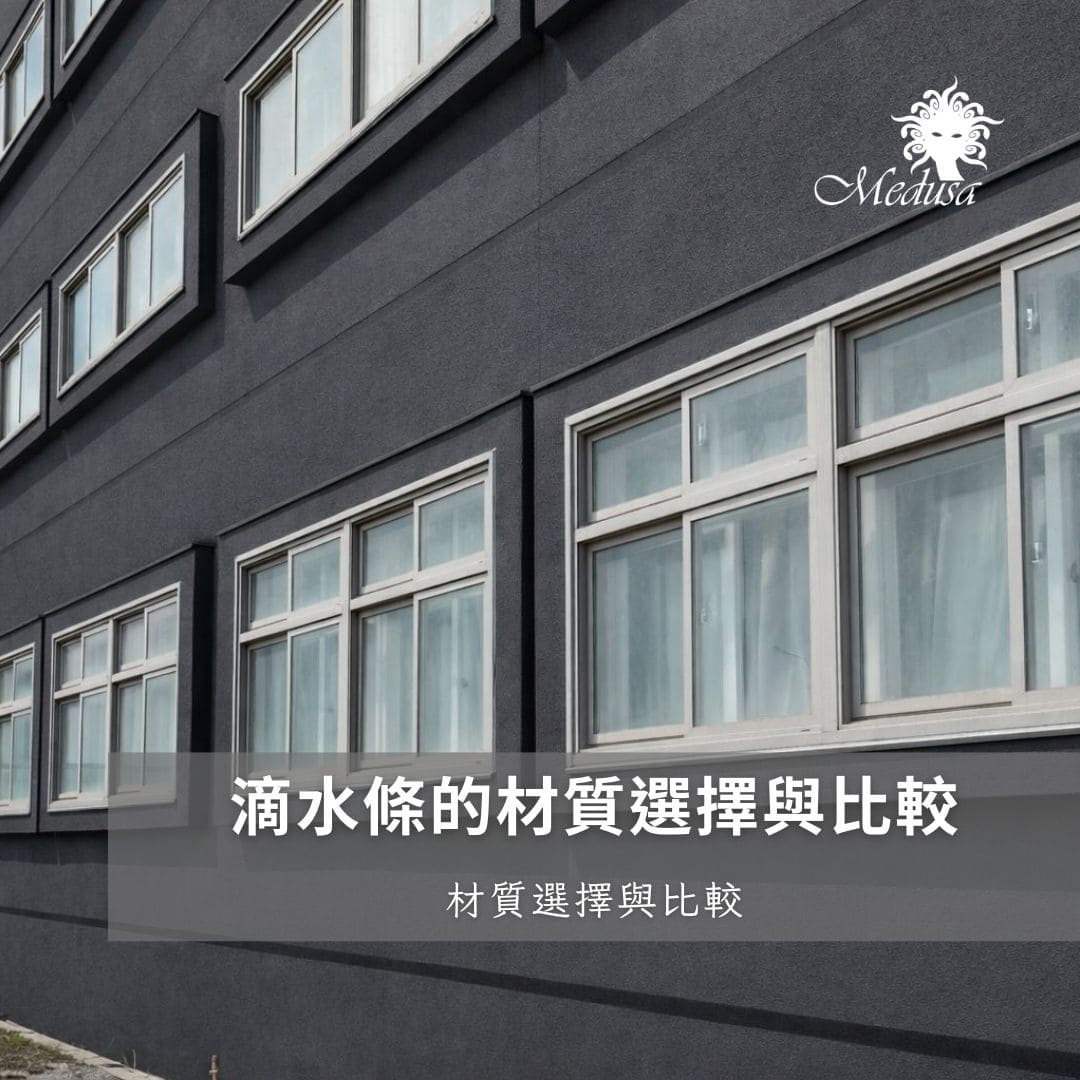

4. Material Selection and Comparison for Drip Edges

With so many construction materials on the market, choosing the right drip-edge material is much like choosing a coating system: climate, sunlight exposure, and budget all matter. Material properties directly affect ease of installation and compatibility with wall coatings. Based on Hua Tsai’s experience working with many contractors, material selection often determines the refinement of the final detailing.

For example, in coastal zones or hot and rainy environments, corrosion resistance and thermal expansion behavior are especially important. To help homeowners and professionals make better decisions, the three most common drip-edge materials on the market are compared below.

Table 4. Material Comparison: Advantages and Disadvantages

Material Type	Advantages	Disadvantages	Recommended Applications
Aluminum Alloy Drip Edge	Excellent weather resistance, high strength, can be powder-coated in many colors, refined appearance	Relatively higher cost	Premium residences, commercial buildings, modern minimalist projects
PVC / Plastic	Affordable, flexible, fast to install, no rusting issue	May become brittle after long-term UV exposure, fewer color options	General residential renovation, DIY projects, budget-conscious works
Stainless Steel Drip Edge	Extremely corrosion-resistant, highest hardness	More difficult to process, strong reflectivity makes color matching with coatings harder	Coastal areas, chemically aggressive environments

Table 5. Specification Analysis

Material Type	Estimated Weathering Life	Corrosion Resistance	Recommended Coating Compatibility	Overall Recommendation
Aluminum Alloy	25–30 years	Excellent (with powder coating)	Stone-like coatings, multicolor coatings	★★★★★ Most recommended
High-Density PVC	8–12 years	Good (does not rust)	General project coatings, DIY use	★★★☆☆ Budget option
Stainless Steel 304	Over 30 years	Excellent (resists strong acid and alkali)	Industrial-style coatings, specialty coatings	★★★★☆ Special-environment option
Traditional Cement Mortar	3–5 years	Poor (prone to cracking)	Not recommended as a standalone solution	★★☆☆☆ Not recommended

Section Summary

Material selection determines the longevity of architectural details. Whether choosing the premium feel and durability of aluminum alloy or the budget advantage of PVC, the decision should be based on the building’s microclimate. By understanding how different materials pair with Hua Tsai coating systems, project budgets can be better controlled while maintaining harmony in the facade’s color and style.

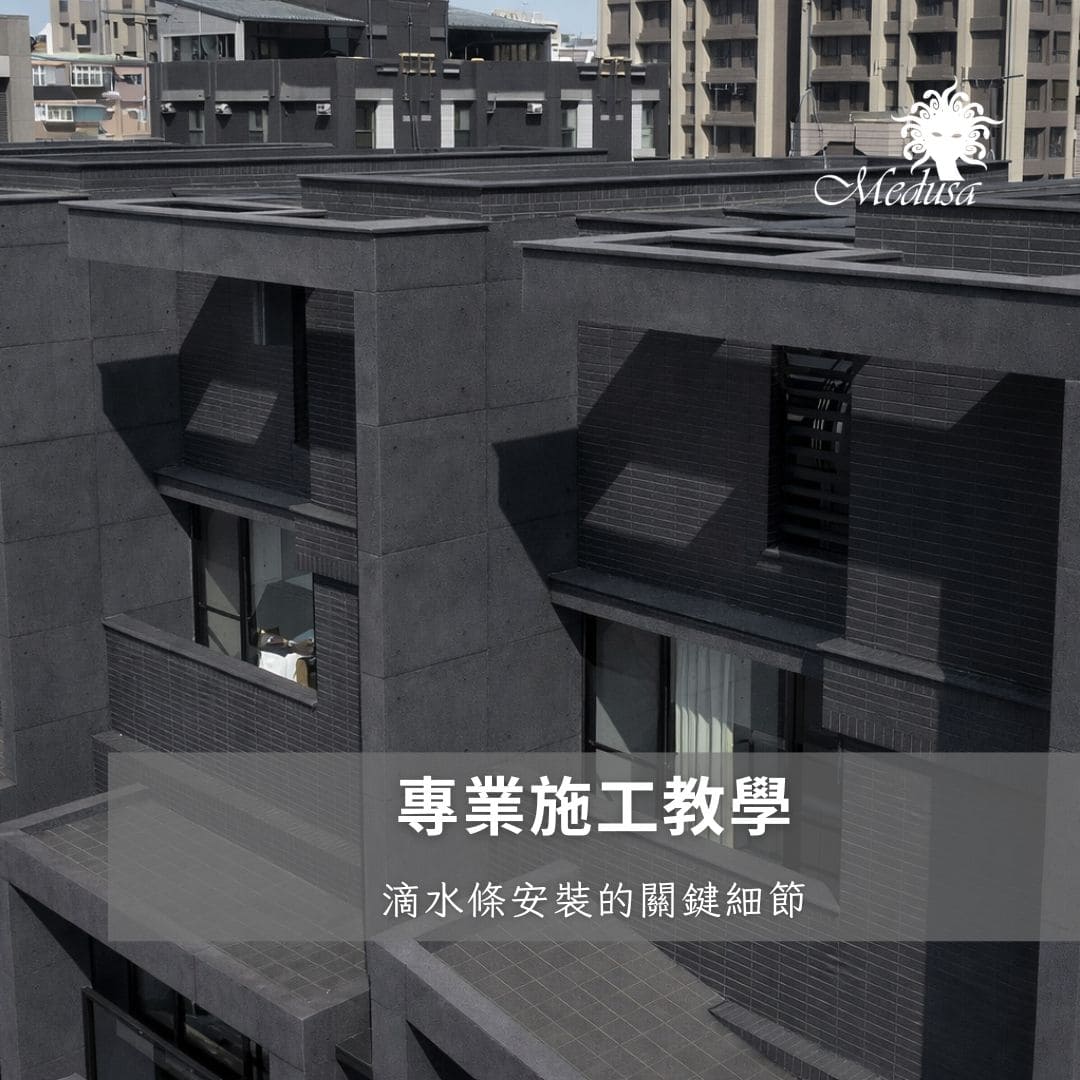

5. Professional Installation Guide: Key Details for Drip Edge Installation

There is a common saying in construction: 30% material, 70% workmanship. Even with top-tier drip-edge accessories and professional Hua Tsai coatings, incorrect installation can produce the opposite effect and may even create leakage problems. In practice, drip-edge installation is not an isolated procedure. It must be closely integrated with waterproofing layers, base rendering, and finish coating.

A professional installation process must account for both water flow direction and interface continuity. From horizontal layout marking to final silicone sealing, every step determines whether the drainage effect will be precise. The following procedure summarizes the standard operating process used by Hua Tsai’s technical team on site.

Step 1: Surface Preparation and Layout Positioning

Before the coating work begins, usually after the leveling layer is completed, precise layout marking is required. The drip edge must be installed level. If it is tilted improperly, water will collect toward the low side and lose its drainage function.

Step 2: Groove Preparation and Waterproofing Application

A high-quality waterproofing material should first be applied at the installation area. For aluminum alloy drip edges, it is recommended to reserve an installation groove so that the winged flange can fit flush against the wall.

Step 3: Fixing and Joint Sealing

Use specialized adhesive or mechanical anchoring. The most critical step is filling the joint between the drip edge and the wall body with weather-resistant silicone sealant to prevent water from infiltrating behind the drip edge.

Step 4: Edge Finishing During Coating Application

When spraying Hua Tsai stone-like coatings, the drip edge should be properly masked and protected. After the coating is completed, remove the protective tape to ensure a clean and crisp junction between the coating and the drip edge.

Table 6. Quality Inspection Standards

Construction Stage	Inspection Standard	Key Technical Data	Tolerance
Horizontal Alignment	Must use a laser level	Slope should tilt outward by 1–2°	Error must be under 0.2%
Joint Sealing	Must be fully filled with weather-resistant silicone	Sealant thickness should exceed 3 mm	Zero-gap infiltration
Wing Flange Embedding	Must be embedded into the anti-crack mesh layer	Embedment depth should reach 3 cm	Ensures structural integration
Topcoat Edge Finish	Coating should extend to the drip groove edge	Film thickness must be uniform	No visible discontinuity

Section Summary

High-quality project outcomes are built on rigorous construction methods. Drip-edge installation must be closely coordinated with waterproofing and coating work; none of these steps can be omitted. Through accurate leveling and complete joint sealing, every drop of rain can be guided away along the intended path. This pursuit of detail is exactly the professional standard Hua Tsai insists upon in every facade renovation project.

6. Common Questions About Drip Edges: What Homeowners and Architects Ask Most Often

Based on thousands of project cases handled by Hua Tsai, the following are the most frequently asked technical questions from architects, contractors, and homeowners when planning facade renovation work.

Q1: Will a drip edge be too visible and ruin the appearance of the building?

A: Modern drip-edge designs are very minimal. Through Hua Tsai’s custom color-matching service, the drip edge can be made to match the wall color almost perfectly, so from ground level it appears nearly invisible and leaves only a crisp architectural line.

Q2: Can a drip edge be added to an existing building after construction?

A: Yes. This is known as a retrofit drip edge. Although installation requires extra attention to bonding strength and finishing quality, it is very effective for solving existing water-streak problems.

Q3: Can a drip edge completely prevent dirt 100%?

A: A drip edge can eliminate more than 80% of tear streaking caused by water draw-back. However, it cannot completely stop dirt carried by vertically falling rain and airborne dust. That is why Hua Tsai recommends a combined approach: high-quality coating + drip edge.

Q4: Does a drip edge have to be installed when the building is first constructed? Is it still possible during old-building renovation?

A: Absolutely. While embedding a drip edge during new construction is ideal, installing one during old-building facade renovation is actually the most common method. Before applying Hua Tsai stone-like coatings, a professional team can install a retrofit drip edge beneath window frames or parapet edges using weather-resistant adhesive, then cover the wing section with the coating layer so it blends seamlessly into the renewed facade.

Q5: Why do I still see faint water marks even after installing a drip edge?

A: This is usually related to installation details or the building slope. A drip edge can resolve over 80% of water marks caused by surface tension, but its performance will be reduced under the following conditions:

1. Incorrect leveling: If the drip edge tilts toward the wall, water will still flow back toward the facade.
2. Unsealed joints: If high-quality silicone is not used to seal the interface between the drip edge and the wall, rainwater may seep in from behind.
3. Atmospheric deposition: Rain falling vertically can still carry airborne dust. This part depends on the self-cleaning performance of Hua Tsai’s anti-stain topcoat.

Q6: How should I choose between PVC and aluminum drip edges?

A: The key factors are weather resistance and appearance.

• Aluminum alloy drip edge: This is the preferred choice for premium projects. It has high hardness, clean lines, and can be powder-coated to match Hua Tsai coating colors such as granite shades and marble tones.
• PVC drip edge: Lower in cost and suitable for budget-oriented works. It is flexible and rust-free, but it becomes brittle faster than metal under prolonged high-temperature sun exposure.

Hua Tsai recommendation: If the goal is long-term value preservation, aluminum alloy is the better investment and more aligned with ESG sustainability principles.

Q7: Will installing a drip edge add a lot to the project budget?

A: Relative to the total facade renovation budget, the cost of a drip edge is very small. Materials and installation usually account for less than 1%–2% of the total exterior wall project cost. Yet it can extend the aesthetic life of the coating by 30%–50% and significantly reduce future cleaning and chemical maintenance costs. In the long term, it is a high-return maintenance investment.

Q8: Can a drip edge be installed as a DIY project?

A: Small localized repairs beneath residential window frames may be possible for DIY users. However, for large facade areas, high-rise buildings, or projects involving spray coatings, professional installation is strongly recommended. Incorrect installation, such as damaging the existing waterproofing layer, may actually cause leakage. Proper finishing by professionals ensures both performance and appearance.

7. Choose Hua Tsai Coatings to Give Buildings Long-Term Value

In exterior wall engineering, choosing high-quality coating materials and precise accessories is only the foundation. The real core competitiveness comes from a systematic solution. When we discuss drip edges and facade protection in depth, the ultimate goal is to ensure that the building continues to reflect its original design intent even after years of exposure. This is why Hua Tsai stands out in the industry: we do not merely sell coatings; we care about the building’s overall performance.

1. Achieving a Triple Win: Low Carbon, Beauty, and Weather Resistance

Choosing Hua Tsai means adopting a protection system aligned with ESG sustainability principles. Our high-performance stone-like and mineral coatings, combined with professional drip-edge design, can extend the maintenance cycle of conventional facades several times over. This not only lowers carbon emissions caused by repeated repairs, but also allows the facade to retain its color and quality under Taiwan’s extreme climate conditions.

Table 7. Carbon Reduction Contribution Analysis

Sustainability Indicator	Traditional Building Maintenance	Green Building Material Planning Solution	Carbon-Neutral Contribution
Chemical Pollution	Regular cleaning with high volumes of chemicals	Physical drainage, no dependence on chemicals	Reduces chemical wastewater discharge by 80%
Repair Frequency	Major refurbishment needed every 10 years	Service life extended to over 20 years	Reduces building waste by 50%
Carbon Footprint	Frequent material replacement leads to high carbon output	One-time long-term protection system	Reduces full life-cycle carbon emissions by 45%
Green Building Credits	Meets only basic waterproofing codes	Supports low-carbon maintenance certification	Helps improve building rating scores

2. Systematic Professional Integration That Solves Construction Pain Points

Hua Tsai understands that details determine success or failure. We provide not only premium spray coating materials, but also professional guidance on interface treatment, drip-edge finishing, and waterproofing layer integration. This one-stop technical support, from material R&D to site application, helps avoid conflicts between contractors and designers during execution and ensures every inch of the wall performs as intended.

3. Increasing Asset Value and Brand Image

A building facade that remains clean and visually fresh is the best calling card for developers and contractors. Through Hua Tsai’s professional planning and project execution quality, a building is no longer just a hard asset that depreciates with time. It becomes a long-lasting work with self-cleaning performance and enduring aesthetics. This has strong strategic value for improving resale competitiveness and building authority in the field of green construction.

Table 8. Brand Performance Comparison

Brand Performance	General Market Coatings	Hua Tsai System Solution	User Benefit
Visual Presentation	Monotonous colors, prone to fading	3D real-stone texture, highly weather-resistant color retention	90% improvement in visual satisfaction
Technical Support	Material supply only, no detail support	Full drip-system technical guidance	Construction error rate reduced by 75%
Protection Scope	Focused on isolated waterproofing points	Systematic integration of drainage and coating	Building leakage complaints reduced by 60%
After-Sales Value	No long-term warranty support	Comprehensive project records and quality follow-up	Builds long-term brand trust

Section Summary

Choosing Hua Tsai Coatings means choosing not only a high-quality coating system, but also a commitment to architectural detail and sustainable aesthetics. Through professional system integration and persistent attention to drip-edge protection details, Hua Tsai helps every client reduce maintenance costs while achieving building performance that exceeds expectations.
